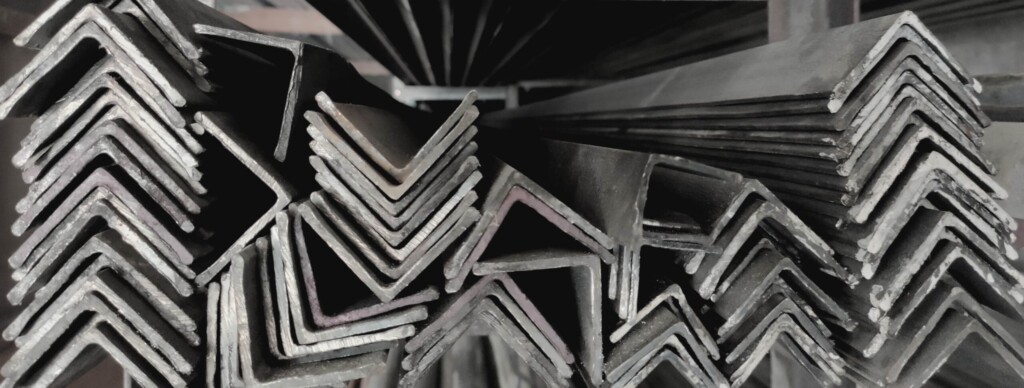

Equal leg angles shall be designated by the affricated reference symbols (∠) followed by the dimensions A, B & T. Where A=B are the dimensions in mm & T stands for thickness. E.g. ∠35 X 35 X 4 = ∠A X B X T
These angles are frequently utilized to provide structural support and stability in various applications, including construction, fabrication of frames, brackets, and reinforcements for buildings, machinery, bridges, and other structures.
SECTION | STANDARD WT./ MTR. | MINIMUM WT. 2.5% | MAXIMUM WT. 2.5% | R1 | R2 |
MSA-50X50X5 | 3.8 | 3.686 | 3.99 | 6.0 | — |
MSA-50X50X6 | 4.5 | 4.365 | 4.725 | 6.0 | — |
MSA-65X65X5 | 4.9 | 4.753 | 5.145 | 6.5 | — |
MSA-65X65X6 | 5.8 | 5.626 | 6.09 | 6.5 | — |
MSA-65X65X8 | 7.7 | 7.469 | 8.085 | 6.5 | — |
MSA-75X75X6 | 6.8 | 6.596 | 7.14 | 7.0 | — |
MSA-75X75X8 | 8.9 | 8.633 | 9.345 | 7.0 | — |
MSA-75X75X10 | 11.0 | 10.67 | 11.55 | 7.0 | — |
MSA-80X80X6 | 7.3 | 7.081 | 7.665 | 8.0 | — |
MSA-80X80X8 | 9.6 | 9.312 | 10.08 | 8.0 | — |
MSA-80X80X10 | 11.8 | 11.446 | 12.39 | 8.0 | — |
MSA-80X80X12 | 14.0 | 13.58 | 14.7 | 8.0 | — |
MSA-90X90X6 | 8.2 | 7.954 | 8.61 | 8.5 | — |
MSA-90X90X8 | 10.8 | 10.476 | 11.34 | 8.5 | — |
MSA-90X90X10 | 13.4 | 12.998 | 14.07 | 8.5 | — |
MSA-100X100X6 | 9.2 | 8.924 | 9.66 | 8.5 | — |
MSA-100X100X8 | 12.1 | 11.737 | 12.705 | 8.5 | — |
MSA-100X100X10 | 14.9 | 14.453 | 15.645 | 8.5 | — |
MSA-100X100X12 | 17.7 | 17.169 | 18.585 | 8.5 | — |
MSA-110X110X6 | 10.1 | 9.797 | 10.605 | 10.0 | 4.8 |
MSA-110X110X8 | 13.4 | 12.998 | 14.07 | 10.0 | 4.8 |
MSA-110X110X10 | 16.6 | 16.102 | 17.43 | 10.0 | 4.8 |
MSA-110X110X12 | 19.7 | 19.109 | 20.685 | 10.0 | 4.8 |
MSA-130X130X8 | 15.9 | 15.423 | 16.695 | 10.0 | 4.8 |
MSA-130X130X10 | 19.7 | 19.109 | 20.685 | 10.0 | 4.8 |
MSA-130X130X12 | 23.5 | 22.31 | 24.675 | 10.0 | 4.8 |
MSA-130X130X16 | 30.7 | 29.779 | 32.235 | 10.0 | 4.8 |
MSA-150X150X10 | 22.9 | 22.213 | 24.045 | 12.0 | 4.8 |
MSA-150X150X12 | 27.3 | 26.481 | 28.665 | 12.0 | 4.8 |
MSA-150X150X16 | 35.8 | 34.726 | 37.59 | 12.0 | 4.8 |
MSA-150X150X20 | 44.1 | 42.777 | 46.305 | 12.0 | 4.8 |
MSA-200X200X10 | 30.8 | 29.876 | 32.34 | 15.0 | 4.8 |
MSA-200X200X12 | 36.9 | 35.793 | 38.745 | 15.0 | 4.8 |
MSA-200X200X16 | 48.5 | 47.045 | 50.925 | 15.0 | 4.8 |
MSA-200X200X20 | 60.0 | 58.2 | 63.0 | 15.0 | 4.8 |
MSA-200X200X25 | 73.9 | 71.683 | 77.595 | 15.0 | 4.8 |
MSA-250X250X32 | 120.0 | 116.4 | 126.0 | 20.0 | 4.8 |
MSA-250X250X35 | 131.25 | 127.312 | 137.812 | 20.0 | 4.8 |
