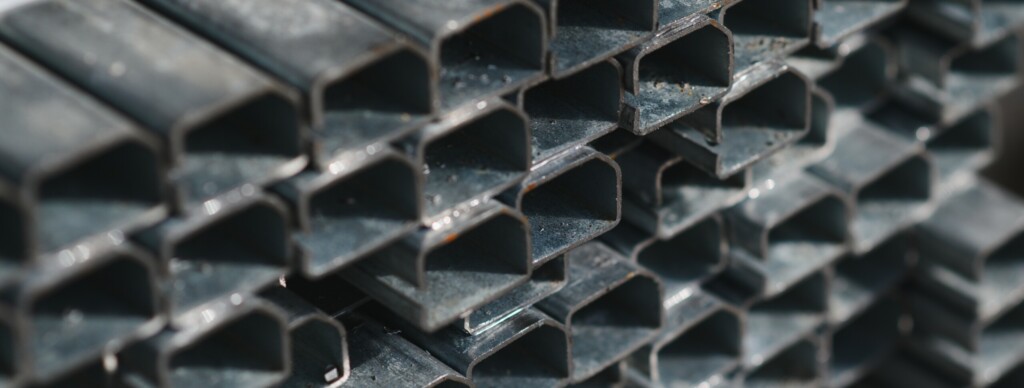

Channel sections are widely used in various building and industrial applications due to their versatility and strength-to-weight ratio. The design of a channel section provides it with greater load-carrying capacity and stiffness compared to flat bars or other similar profiles. Dimensions, Mass & Sectional properties of sloping flange channels are as given below:
SECTION | STANDARD WT./ MTR. | MINIMUM WT. 2.5% | MAXIMUM WT. 2.5% | FLANGE THICK. | WEB THICK. | R1 | R2 |
MC-75X40 | 6.0 | 5.85 | 6.15 | 6.5 | 4.0 | 8.5 | 2.4 |
MC-75X40 | 7.14 | 6.961 | 7.318 | 7.5 | 4.8 | 8.5 | 2.4 |
MC-100X50 | 8.9 | 8.677 | 9.122 | 7.0 | 4.5 | 9.0 | 2.4 |
MC-100X50 | 9.56 | 9.321 | 9.799 | 7.7 | 5.0 | 9.0 | 2.4 |
MC-125X65 | 13.1 | 12.772 | 13.427 | 8.2 | 5.3 | 9.5 | 2.4 |
MC-150X75 | 16.8 | 16.38 | 17.22 | 9.0 | 5.7 | 10.0 | 2.4 |
MC-175X75 | 19.6 | 19.11 | 20.09 | 10.2 | 6.0 | 10.5 | 3.2 |
MC-200X75 | 22.3 | 21.742 | 22.857 | 11.4 | 6.2 | 11.0 | 3.2 |
MC-250X82 | 34.2 | 33.345 | 35.055 | 14.1 | 9.0 | 12.0 | 3.2 |
MC-300X90 | 36.3 | 35.392 | 37.207 | 13.6 | 7.8 | 13.0 | 3.2 |
MC-400X100 | 50.1 | 48.847 | 51.352 | 15.3 | 8.8 | 15.0 | 4.8 |
